Insert FIAT, Zinc die chrome-plated
Insert FIAT, Zinc die chrome-plated
Cam, Polyamide GF black
Cam, Polyamide GF black

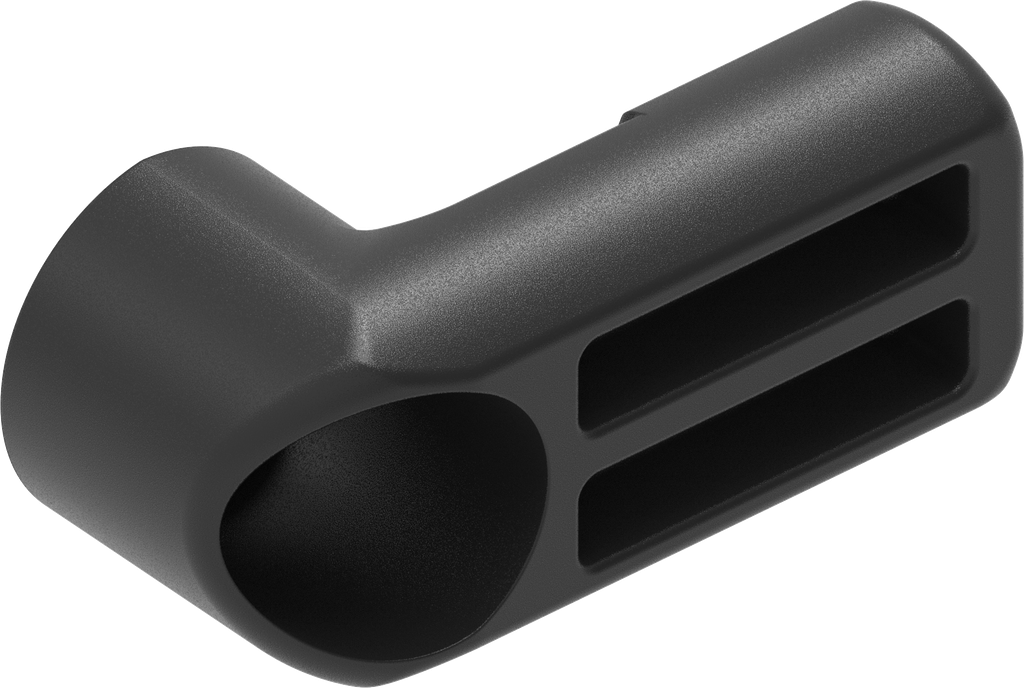

Cam, Polyamide GF black; 1000-386-26

https://20250616-uat.emka.opaas.sh/products/1000-386-26-cam-polyamide-gf-black-200217 https://20250616-uat.emka.opaas.sh/web/image/product.template/200217/image_1920?unique=9043c71

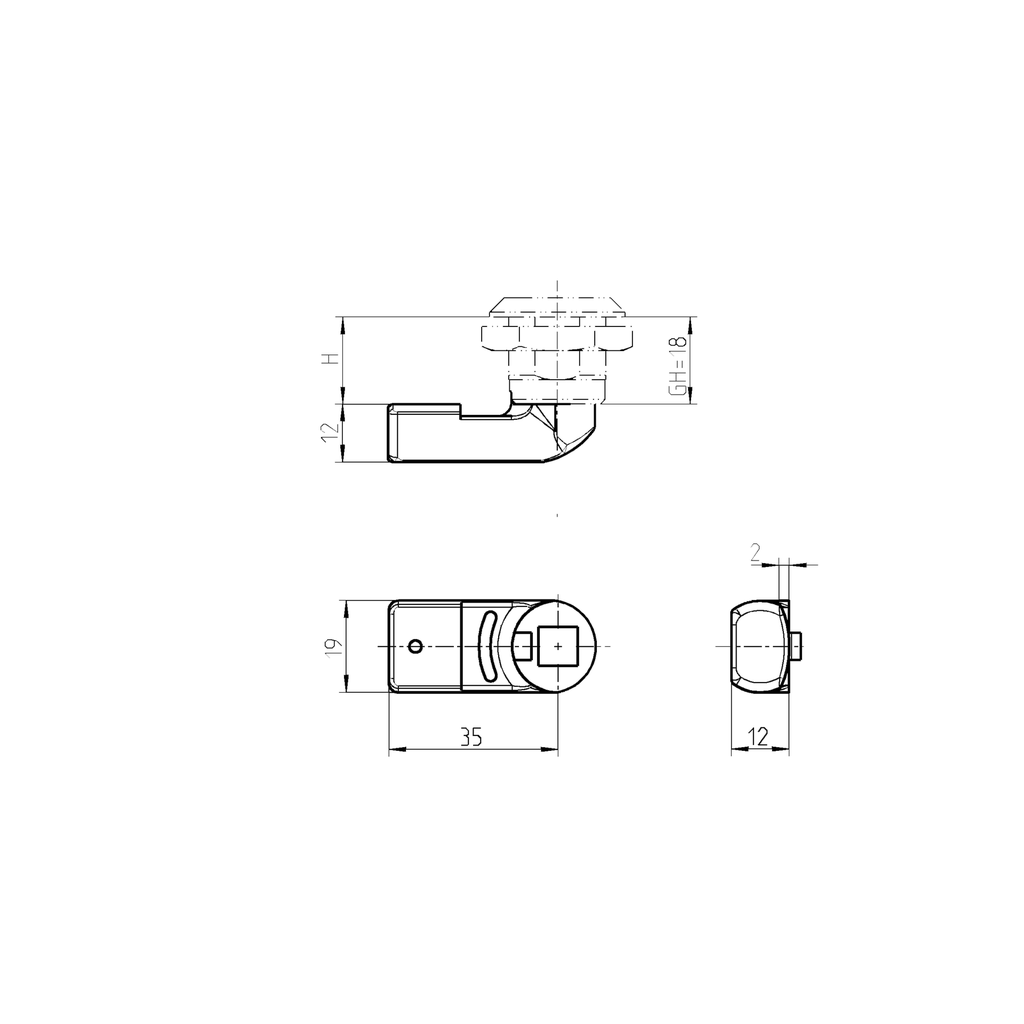

Offset h = 8 mm

    This combination does not exist.

    Inside the sealing
    Internal Reference: 1000-386-26
    Product Type: Cam
    Material: Polyamide GF
    Program: 1000
    Surface: black
    Dimension A: 31 mm
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: positive
    offset of cam: 8 mm
    Dimension L: 35 mm
    Spoon: Yes
    No Specifications
